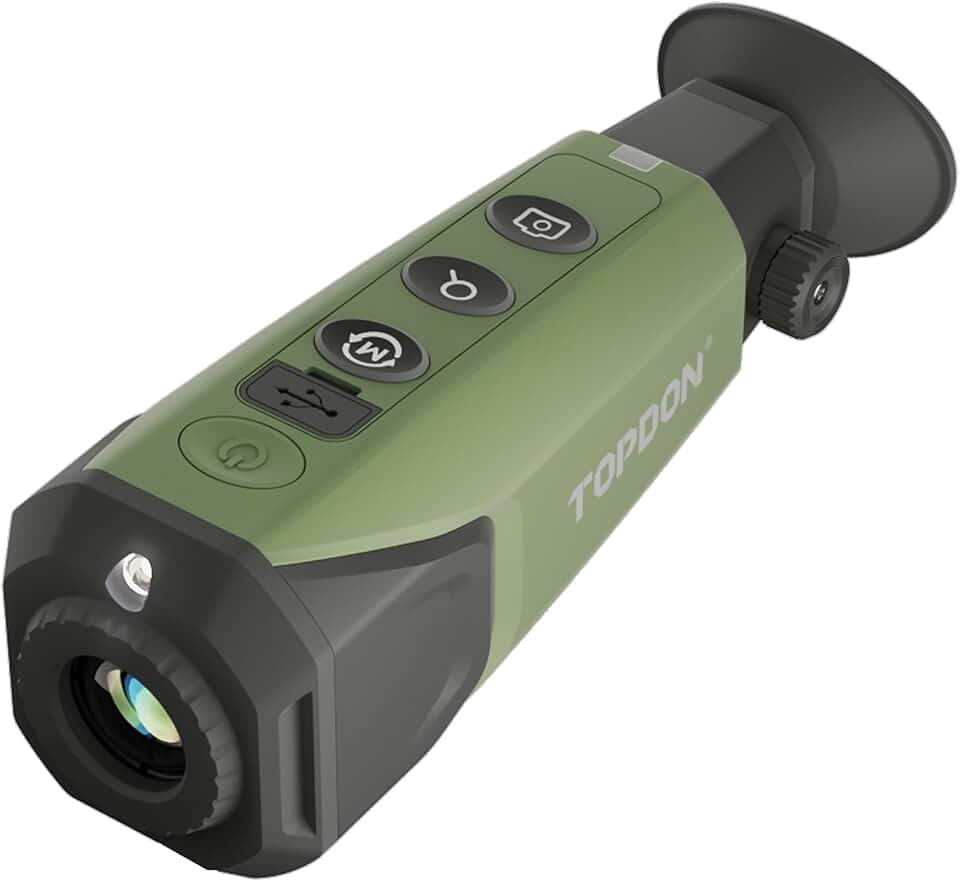

TOPDON TS004 Thermal Imaging Monocular, 13mm 50Hz Night Vision | 320 x 240 TISR 256 x 192 IR Resolution, Supported Wireless Connection, 11h Battery Life, IP67 Monocular for Hunting, Olive Green

Product Overview

The TOPDON TS004 is a thermal imaging monocular designed for use in low light environments. It features a 13 mm lens and operates at a 50 Hz refresh rate, providing a stable image for field activities such as hunting.

Imaging Performance

Internal sensors deliver a thermal image resolution of 320 × 240 pixels (TISR) and an infrared resolution of 256 × 192 pixels. These specifications determine the detail visible in the thermal output and help users identify targets and terrain in darkness.

Display and Controls

The device incorporates a built‑in display that renders the sensor data directly to the user’s eye. Controls are located on the side of the monocular, allowing for adjustments to focus, zoom, and other settings without the need for external equipment.

Wireless Connectivity

Wireless connection is supported, enabling the monocular to pair with compatible devices. This feature allows users to transmit live thermal footage to a mobile device or monitor for remote observation.

Power Supply

A rechargeable battery powers the TS004 for up to 11 hours of continuous operation under typical usage conditions. Battery life is specified for the standard operating temperature range and usage pattern outlined in the product documentation.

Weather Protection

The monocular carries an IP67 rating, indicating protection against dust ingress and temporary immersion in water. This rating ensures reliable performance in outdoor environments that may involve exposure to moisture or fine particulates.

Color and Build

Finished in an olive green tone, the TS004’s exterior is designed to blend with natural surroundings commonly encountered during hunting excursions. The casing provides a solid grip and is engineered to withstand the demands of fieldwork.

Application

Designed for hunters, the TS004’s thermal imaging capability assists in detecting animal silhouettes and movement in complete darkness or through obstacles such as fog. The device’s compact form and lightweight construction make it suitable for handheld use during extended periods in the field.

Key Features Summary

• Lens: 13 mm
• Refresh Rate: 50 Hz
• Thermal Resolution: 320 × 240 (TISR)
• Infrared Resolution: 256 × 192
• Connectivity: Wireless supported
• Battery Life: 11 hours
• Weather Rating: IP67
• Color: Olive Green

Usage Tips

For optimal performance, users should acclimate the device to ambient temperature before operation. The monocular’s wireless feature can be leveraged by pairing with a compatible smartphone or tablet to stream real‑time thermal imagery to a secondary screen.

When operating in environments with significant precipitation or high humidity, the IP67 rating ensures the device remains sealed against moisture ingress. Nevertheless, it is advisable to keep the monocular’s exterior dry before and after use to prolong component longevity.

Battery management can be enhanced by turning off non-essential functions when not in active use. The 11‑hour runtime supports extended periods of observation without the need for immediate recharging.

Maintenance and Care

After prolonged use, cleaning the external lens with a microfiber cloth removes dust or smudges that could affect image clarity. Avoid the use of abrasive cleaners or solvents that may damage the lens coating.

To store the TS004 when not in use, place it in a protective case that aligns with its IP67 rating, ensuring no debris enters the sensor aperture.

Compatibility Considerations

The wireless connection supports standard protocols compatible with a range of mobile devices, but users should consult the device manual for specific pairing instructions and supported device models.

Conclusion

The TOPDON TS004 combines thermal imaging technology with practical features tailored for hunters and outdoor enthusiasts. Its 13 mm lens, 50 Hz refresh rate, and dual sensor resolutions provide detailed thermal views, while the wireless connectivity, 11‑hour battery life, and IP67 rating offer convenience and durability in demanding field conditions.
