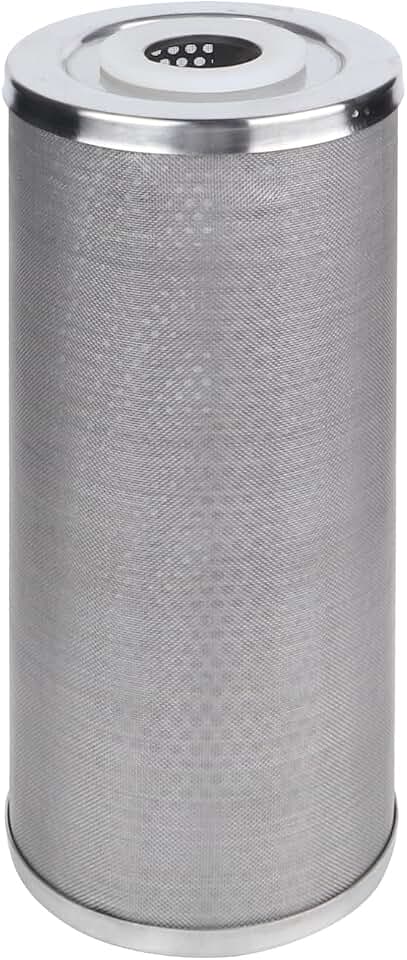

10-Inch Cleanable Stainless Steel Wire Mesh Filter Cartridge, 4.5" OD (5 Micron)
Product Description
Product Overview
The 10‑inch Cleanable Stainless Steel Wire Mesh Filter Cartridge is a cylindrical filter element designed for use in filtration systems that require a fine mesh barrier. The cartridge measures 10 inches in length and has an outer diameter of 4.5 inches. It features a wire mesh with a pore size of 5 microns, providing a consistent opening for filtration purposes.
Specifications
- Length: 10 inches
- Outer Diameter: 4.5 inches
- Mesh Pore Size: 5 microns
- Material: Stainless steel wire mesh
- Design: Cleanable cartridge
Material and Construction
The cartridge is constructed from stainless steel wire. Stainless steel is a metal alloy that typically contains iron, chromium, and sometimes nickel, offering a smooth surface and resistance to oxidation. In a wire mesh form, the metal is drawn into fine strands that are woven or bonded to create a uniform grid. The 5‑micron specification refers to the average spacing between the mesh strands, which defines the size of particles that will be retained.
Wire Mesh Formation
Wire mesh is produced by drawing a stainless steel wire through a die that shapes the strand into a specific diameter. The wire strands are then aligned and stitched or welded together to form a continuous sheet of mesh. When cut to the required cartridge length and diameter, the mesh retains its structural integrity and provides a consistent filtration surface.
Cleaning and Maintenance
The cartridge is designed to be cleaned rather than discarded after use. Cleaning typically involves rinsing the mesh with water or an appropriate solvent to remove trapped particles. Because the mesh is made of stainless steel, it can withstand repeated cleaning cycles without corrosion or degradation of the mesh structure. The cylindrical shape allows for easy removal from a housing for cleaning.
Cleaning Procedure
- Remove the cartridge from the housing or system.
- Rinse the mesh thoroughly with clean water or a suitable solvent.
- Ensure all trapped particles are removed from both sides of the mesh.
- Dry the cartridge before reinstalling, if desired.
General Applications
Filtration systems that require a fine mesh barrier can incorporate this cartridge. The 5‑micron mesh spacing provides a consistent threshold for particle retention. Because the cartridge is made of stainless steel, it can be used in environments where a clean, non‑reactive material is desired. The cleanable design allows for extended use in systems where periodic maintenance is feasible.
Package Contents
The product is shipped as a single filter cartridge. No additional accessories, tools, or packaging are included beyond the cartridge itself.
Compatibility Note
When selecting this cartridge for a filtration system, verify that the system’s housing or filter body can accommodate a 10‑inch length and a 4.5‑inch outer diameter. The 5‑micron mesh specification should match the desired particle retention criteria of the system.
Quality Assurance
The stainless steel mesh is manufactured to maintain uniform strand diameter and spacing across the entire surface. The cartridge’s dimensions are precise, ensuring reliable fit within standard filter housings designed for these measurements.
