Digital Multimeter Voltmeter and Circuit Tester: 2000 Counts AC/DC Voltage, Current, Resistance, Diode, Continuity Meter with Backlit LCD and Leads
Product Description

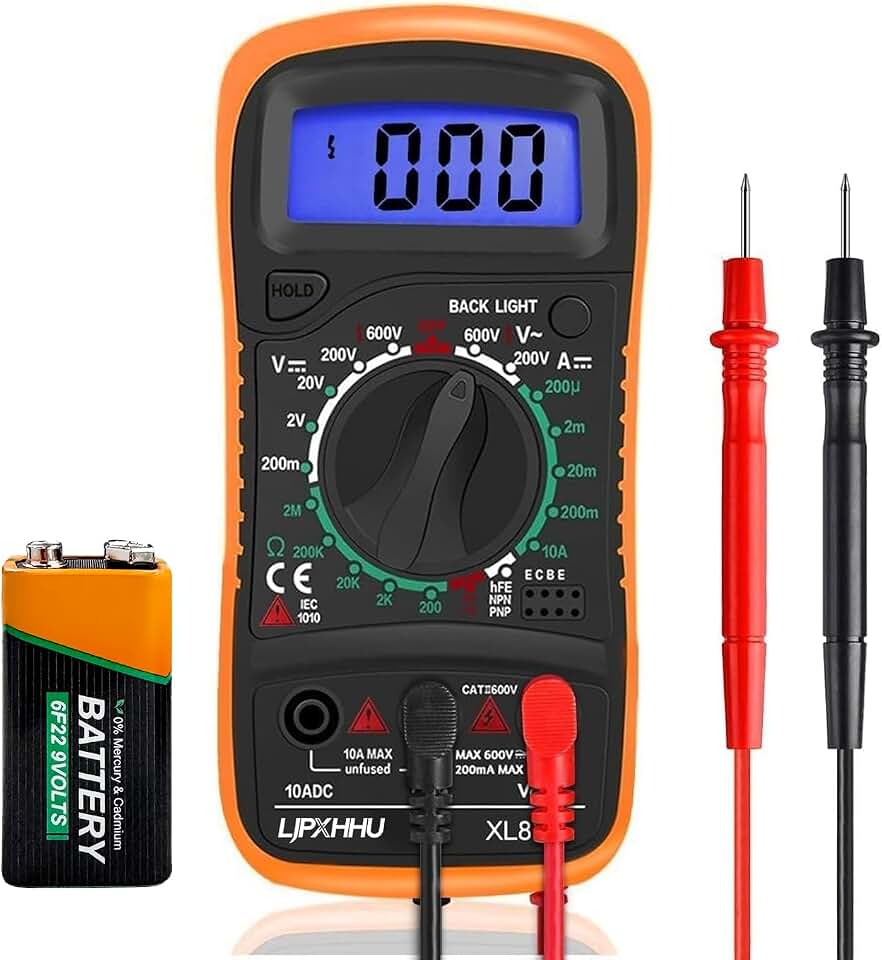

Digital Multimeter with Voltage, Current, Resistance, Diode, and Continuity Functions
This device is a digital multimeter designed to measure AC and DC voltage, current, resistance, diode conditions, and circuit continuity. It displays readings on a backlit LCD screen, allowing visibility in a range of lighting conditions. The instrument is equipped with standard test leads for connecting to circuits, enabling a straightforward measurement process.
Key Features and Design
- Measurement Capabilities: Includes AC/DC voltage measurement with 2000 counts, current measurement, resistance measurement, diode testing, and continuity checks.
- Backlit LCD Display: The screen is illuminated for clear visibility, making it easier to read measurements during low‑light work.
- Standard Test Leads: Comes with leads that can be attached to the multimeter’s terminals to conduct tests on electrical circuits.
Measurement Functions Explained
The multimeter can be used to determine the voltage present in an AC or DC circuit. It offers a measurement resolution that counts up to 2000 distinct values, providing a readable display of voltage levels.
Current measurement capability allows for assessment of the amount of electric flow within a circuit. By selecting the current mode, users can connect the leads in series to capture this value.
Resistance measurement mode enables the determination of the opposition to current within a component or section of a circuit. When the test leads are connected across a resistor or other device, the meter displays the resistance reading.
Diode testing mode can be used to check the forward voltage drop of a diode. By connecting the leads to the diode, the meter shows the voltage that the diode allows to pass.
Continuity testing provides a quick way to verify whether a circuit or component has a complete path for current. If a path exists, the meter indicates continuity; if not, the reading shows no continuity.
Practical Applications
Engineers, technicians, hobbyists, and maintenance personnel use this multimeter to troubleshoot electrical circuits, verify component functionality, and perform routine inspections. The device’s versatile measurement modes cover most common diagnostic needs encountered in electrical work.
Use and Setup
To begin measurement, select the appropriate mode by rotating the selector knob or pressing the mode button, depending on the specific model. Attach the test leads to the designated terminals. For voltage, current, and resistance measurements, place the leads across the circuit or component. For diode and continuity tests, connect the leads to the two ends of the diode or across the circuit path. The backlit LCD will display the reading once the connection is stable.
When measuring current, ensure that the circuit is isolated from power sources before connecting the meter in series to prevent accidental short circuits. For voltage and resistance tests, the meter can be connected in parallel across the points of interest.
Construction and Build
The multimeter features a durable housing that protects internal components while allowing easy access to the display and terminals. The backlit display is designed to reduce eye strain during extended use, and the leads are insulated for safety.
Safety Considerations
While the instrument is engineered for common electrical measurements, users should observe standard electrical safety practices. Avoid using the meter to test circuits that exceed its design limits. Disconnect power before switching the device to a different measurement mode that requires series connection.
Summary
This digital multimeter provides essential electrical measurement functions in a compact form. With its backlit LCD and standard leads, it delivers a clear reading of voltage, current, resistance, diode behavior, and continuity. The straightforward design makes it suitable for a variety of diagnostic tasks in both professional and hobbyist settings.
