ICSTATION DIY FM Radio Soldering Kit with LCD1602 Display, LED Flashing Lights, and 87-108MHz Frequency – Educational Solder Practice Board for Students and Beginners

Product Overview

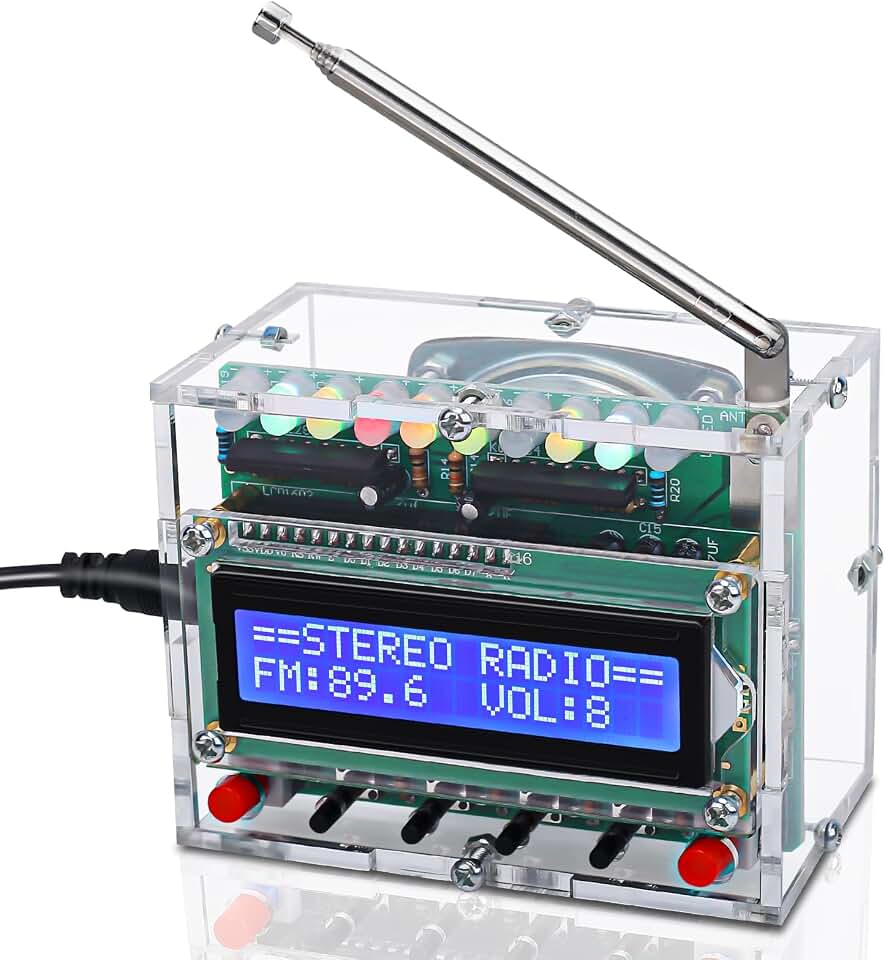

The ICSTATION DIY FM Radio Soldering Kit is a hands‑on educational board designed for students and beginners who want to learn about radio electronics and soldering. The kit includes a complete soldering board that features a functional FM radio circuit operating across the 87–108 MHz frequency range. An LCD1602 character display provides real‑time information on the selected frequency, and a set of LED flashing lights adds visual feedback during operation. The kit is intended to serve as a practice platform for soldering skills while also demonstrating the basic principles of FM radio reception.

Key Features

• FM Radio Frequency Range: Supports tuning within the standard 87–108 MHz band.
• LCD1602 Display: A 2‑line character LCD that shows the current frequency or other user‑defined messages.
• LED Flashing Lights: Visual indicators that respond to the radio’s activity, enhancing the learning experience.
• Educational Solder Practice Board: A dedicated circuit layout that allows repeated soldering of components in a controlled environment.
• Designed for Students and Beginners: The kit includes clear assembly instructions and component placement guides suited to novice users.

Educational Value

The board’s design incorporates a straightforward radio receiver topology that can be dissected and examined at each stage of assembly. As students solder the components, they encounter real components such as inductors, capacitors, diodes, and transistors that are commonly found in FM radio circuits. The process of placing and soldering these parts introduces critical skills such as component identification, use of a soldering iron, and troubleshooting of simple solder defects. By the time the circuit is completed, learners can observe how the FM signal is captured, mixed, filtered, and demodulated to produce audible audio. The LCD display provides immediate feedback on the frequency being received, reinforcing the link between the circuit’s electrical behavior and its functional output.

Use in Classroom and Hobby Projects

Because the kit is intentionally simple and fully labeled, it can be integrated into laboratory sessions or workshop projects. In a classroom setting, the board serves as a tangible example of how radio waves are translated into sound. It also offers a safe environment for students to practice soldering without the risk associated with high‑voltage equipment. For hobbyists, the board can be a starting point for more advanced modifications, such as adding a microphone input, experimenting with antenna designs, or programming the LCD for custom displays.

Getting Started

The kit is shipped with all necessary components and a step‑by‑step assembly guide. The guide details the sequence of soldering tasks, the required tools, and safety precautions. After completing the soldering process, the board is ready for testing using a standard FM radio source or a nearby broadcast station. The LED flashing lights activate when a signal is detected, while the LCD displays the corresponding frequency. Adjusting the tuning knob (included in the kit) demonstrates the frequency response of the receiver. This interactive experience reinforces theoretical lessons about frequency modulation, signal processing, and user interface design.

Maintenance and Reusability

Once the board is assembled, it can be used repeatedly for practice. The components on the board are passive or low‑power, so the board can be powered using a standard battery or a regulated DC supply without risk of component damage. The LCD and LEDs are designed for continuous operation, and the solder joints are robust enough for repeated handling. This durability makes the kit suitable for long‑term educational use or for individual practice sessions over an extended period.

Safety Considerations

All components included in the kit are rated for low‑voltage operation. The soldering instructions emphasize the use of appropriate personal protective equipment, such as eye protection and a well‑ventilated workspace. Users are advised to follow standard soldering best practices, including proper handling of the soldering iron and careful placement of components to avoid bridging and short circuits. By adhering to these guidelines, the kit offers a safe learning environment for individuals at all skill levels.
