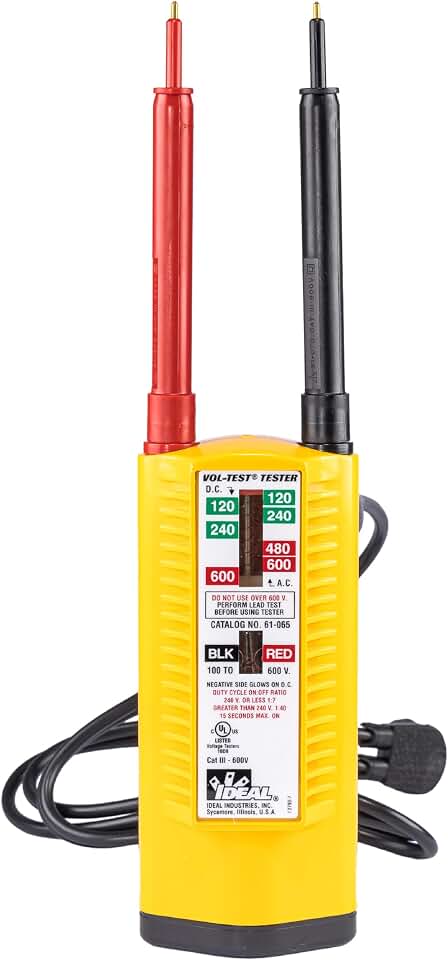

Ideal Electrical Vol-Test 61-065 CAT III 600V Solenoid Voltage Tester

The Ideal Electrical Vol-Test 61-065 is a handheld solenoid voltage tester designed to measure electrical voltage on a wide range of circuits and panels. This compact tool provides readings for both alternating current (AC) and direct current (DC) up to a maximum of 600 volts. Its CAT III rating indicates suitability for use on equipment that operates at 50 or 60 Hz and is intended for residential, commercial, or light industrial environments. The tester’s solenoid mechanism delivers a visual indication of voltage presence, allowing users to quickly confirm whether a line is live.

Key Technical Specifications

• Maximum Test Voltage: 600 V AC or DC
• Category Rating: CAT III
• Type: Solenoid voltage tester
• Application: Circuits and panels
• Form Factor: Handheld, compact design

The tester’s solenoid design incorporates a coil that activates when voltage is detected. When powered, the solenoid moves to a visible position, indicating the presence of electrical energy on the tested point. Because it does not require a probe to be placed in contact with the live conductor, it is often used for quick checks on exposed terminals or bus bars. The device operates in a simple on/off mode, with no need for calibration or adjustment. Its internal circuitry is engineered to provide a reliable indication for both AC and DC sources within the specified voltage range.

Design Features and Ergonomics

The tester’s compact size allows it to fit comfortably in a hand, providing a secure grip during operation. The casing is constructed from durable plastic to withstand typical workplace handling. The clear indicator area is positioned for easy visual inspection, while the lever mechanism for engaging the test is located on the side for ergonomic access. The overall layout promotes quick deployment and minimal user confusion when operating on a variety of panels or wiring runs.

Application Scenarios

Typical use cases for this voltage tester include:

• Pre‑testing electrical panels before maintenance procedures.
• Checking the presence of voltage on bus bars, circuit breakers, or terminal blocks.
• Verifying that AC or DC circuits are de‑energized before disconnection.
• Providing a quick visual check in both residential and commercial installations where voltages do not exceed 600 V.

Because the tester’s solenoid activation is immediate, it is often used as a preliminary safety step in a larger verification sequence. The tool is not intended to replace a full multimeter when detailed voltage readings are required, but it serves as an efficient device for confirming the existence or absence of electrical energy within its operating range.

Construction and Build Quality

The internal components are housed in a sealed enclosure that protects the solenoid coil and electronic circuitry from moisture and dust. The casing material is chosen for its ability to resist wear during frequent handling. The device’s power source is typically a sealed battery or a simple switch that engages the coil directly from the measured voltage; the specifications for power supply are inherent to the solenoid’s design. The indicator mechanism is engineered to produce a clear mechanical movement that is easily observed in low‑light or standard lighting conditions.

Testing and Compliance

With a CAT III rating, this tester meets the safety and performance standards for electrical equipment operating on 50 Hz or 60 Hz frequency power systems. The rating indicates that the device is designed to handle the electrical stresses typically found in residential or commercial environments, including surge and transients that occur during normal operation. The product’s voltage measurement capability up to 600 V aligns with the common voltage limits in these settings, ensuring that users can reliably detect live conductors without exceeding the instrument’s safe operating envelope.

Maintenance and Care

Because the tester contains a mechanical solenoid and a simple electronic circuit, routine care involves keeping the indicator area free from dirt or debris that could obstruct the solenoid’s movement. Periodic inspection of the casing for cracks or signs of wear is recommended, especially if the device is used in environments with frequent mechanical impact. No specialized cleaning agents are required; a dry cloth is sufficient to maintain visibility of the indicator.

Conclusion

In summary, the Ideal Electrical Vol-Test 61-065 offers a focused solution for detecting voltage presence on circuits and panels up to 600 V AC or DC. Its compact, handheld design, combined with a CAT III rating and solenoid indicator mechanism, makes it a reliable tool for quick verification tasks in residential and commercial settings. The device’s straightforward operation, durable construction, and clear visual feedback contribute to its effectiveness as an on‑site voltage detection aid.
