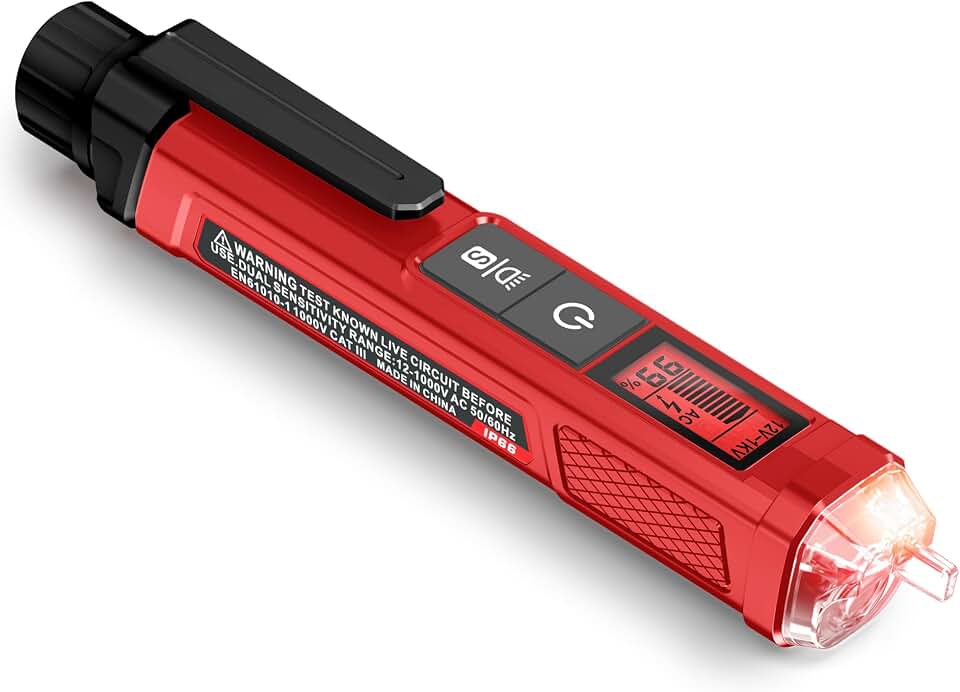

KAIWEETS Non-Contact Voltage Tester with LCD Screen, Dual Range AC 12V-1000V Signal Percentage Meter, Live/Null Wire Detector and Breakpoint Finder (Full Red)
Product Description
Product Overview
Designed to provide clear voltage information without the need for direct contact, the KAIWEETS Non‑Contact Voltage Tester offers a straightforward way to assess electrical circuits. It features an LCD screen that displays voltage readings in two selectable ranges, a signal percentage meter, and integrated live and null wire detection. The breakpoint finder function alerts users to the exact point where a voltage change occurs, all housed in a full red casing that is easy to locate on tools and work sites.
Key Functionalities
- Non‑Contact Voltage Detection: Measures voltage in the air surrounding a conductor, eliminating the need for physical connection.
- Dual Range LCD Display: Switches between 12 V AC and 1 000 V AC, presenting the measured value directly on the screen.
- Signal Percentage Meter: Provides a relative indicator of signal strength within the selected range.
- Live/Null Wire Detection: Differentiates between energized (live) and non‑energized (null) conductors, giving a clear visual cue.
- Breakpoint Finder: Detects the point at which a voltage transition occurs, aiding in troubleshooting.
- Full Red Housing: The color of the body offers visual contrast for quick identification.
Operational Principles
The tester’s internal sensor picks up the electric field created by AC voltage on a conductor. When positioned near a live wire, the sensor triggers the display and the associated detection modes. Adjusting the range control selects either 12 V AC or 1 000 V AC, allowing the user to view the exact voltage within that band. The signal percentage meter offers an additional visual representation of how close the reading is to the maximum of the chosen range. The live/null feature activates a distinct indicator when a live conductor is detected, while the breakpoint finder signals a shift from one voltage state to another.
Practical Use Cases
Electrical technicians and hobbyists can apply this tester when working on residential wiring, panel boards, or low‑voltage systems. Because it is non‑contact, it reduces the risk of accidental short circuits during preliminary checks. The dual‑range capability covers both standard household voltages and higher‑voltage scenarios that may arise in certain installations. The breakpoint finder assists in locating where a voltage drop or rise occurs, which is useful when diagnosing circuit interruptions or verifying continuity between two points.
Design and Handling
With its compact, ergonomic shape, the tester is comfortable to hold for extended periods. The full red body not only stands out against typical tools and equipment but also helps prevent the device from being overlooked in a cluttered workspace. The LCD screen is positioned for clear visibility, and the range selector is tactile, enabling quick adjustments without glancing away from the work area. The built‑in indicator lights and audible signals work together to provide immediate feedback to the user.
Limitations and Usage Notes
While the tester offers voltage detection and related diagnostics, it does not replace comprehensive electrical testing equipment. It is intended for preliminary inspections and basic troubleshooting. The device is calibrated for AC voltage within the 12 V to 1 000 V range; readings outside this band are not provided by the instrument. Users should observe all standard electrical safety practices when working near energized circuits, regardless of the device’s status or indicators.
Specifications
- Voltage Range: 12 V AC to 1 000 V AC
- Display: LCD screen with dual‑range capability
- Functional Modes: Signal percentage meter, live/null wire detection, breakpoint finder
- Housing Color: Full red
- Device Type: Non‑Contact Voltage Tester
Conclusion
The KAIWEETS Non‑Contact Voltage Tester presents a set of clearly defined functions for detecting and measuring AC voltage without direct contact. Its dual‑range LCD display, signal percentage meter, and live/null and breakpoint detection features allow users to gain insight into a circuit’s status quickly. Designed with a distinct full‑red housing, the tester remains visible and easy to locate on any tool rack or workbench, supporting reliable inspection in a variety of electrical environments.
