Kingston Ironkey Keypad 200 USB-C 32GB Encrypted Flash Drive | OS Independent | FIPS 140-3 Level 3 | XTS-AES 256-bit | BadUSB and Brute Force Protection | Multi-Pin Option | Part IKKP200C/32GB
Product Description

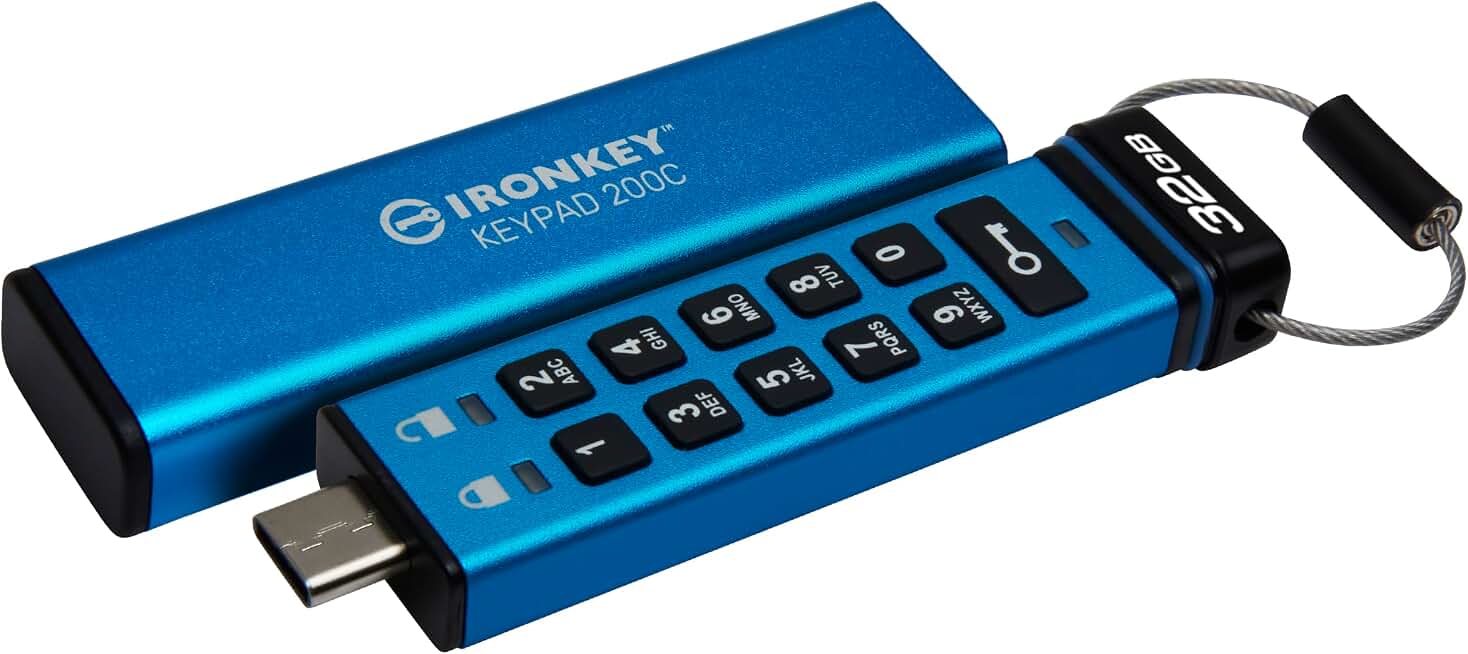

Kingston Ironkey Keypad 200 USB-C 32GB Encrypted Flash Drive
The Kingston Ironkey Keypad 200 is a portable storage device that combines secure data handling with a compact form factor. The drive features a USB‑C interface for data transfer and a physical keypad that requires a user‑defined pin to unlock the device.
Key Specifications
- Storage Capacity: 32 GB
- Interface: USB‑C
- Encryption: XTS‑AES 256‑bit
- Security Standards: FIPS 140‑3 Level 3 compliant
- Protection Features: BadUSB and brute‑force protection
- Pin Configuration: Multi‑pin option
- Operating System Compatibility: OS independent (Windows, macOS, Linux, and other systems with USB‑C support)
- Part Number: IKKP200C/32GB
Physical Design
The drive is engineered to fit into a standard USB‑C port. A tactile keypad is integrated into the device, allowing a user to enter a PIN that gates access to stored files. The keypad layout is simple, with numbered keys that are easy to use on the go. No additional accessories are required for basic operation; the device can be inserted and removed without any special steps.
Encryption and Security
Data stored on the Ironkey Keypad 200 is encrypted with XTS‑AES 256‑bit, a symmetric key algorithm that protects information from unauthorized access. The encryption key is derived from the user’s PIN, ensuring that only a person who knows the PIN can decrypt the contents of the drive.
Compliance with the Federal Information Processing Standards (FIPS) 140‑3 at Level 3 confirms that the device meets rigorous requirements for cryptographic modules. This certification covers aspects such as cryptographic key management, authentication, and physical security. The Level 3 standard also addresses the need for tamper evidence and response capabilities.
BadUSB and Brute‑Force Protection
The drive incorporates protection mechanisms against BadUSB attacks, which involve malicious firmware changes that can reprogram a USB device to act as a keyboard or other malicious hardware. By detecting unauthorized firmware modifications, the drive helps maintain the integrity of the data it stores.
Brute‑force protection limits the number of consecutive incorrect PIN attempts. After a predetermined number of failed attempts, the drive enforces a lockout period, preventing further attempts and reducing the risk of unauthorized access through repeated guessing.
Multi‑Pin Configuration
Users can configure the keypad to support multiple PINs. This feature allows more than one authorized individual to access the stored data, each with a distinct PIN. The PIN configuration is set during initial setup and is required for every subsequent unlock of the device.
OS Independence
Because the drive uses standard USB‑C connectivity and implements encryption at the device level, it does not rely on any operating‑system–specific software. The same hardware interface works with any operating system that supports USB‑C, including Windows, macOS, Linux distributions, and other environments where USB‑C devices are recognized.
Typical Use Cases
The Ironkey Keypad 200 is suited for scenarios where secure transport of digital files is required. Examples include the movement of confidential documents between office locations, the sharing of protected media, or the temporary storage of data that must remain inaccessible to unauthorized users. The device’s keypad ensures that only individuals with the correct PIN can access the files, even when the drive is physically in the possession of an outsider.
Maintenance and Care
To preserve the integrity of the encryption and the physical keypad, the drive should be kept away from extreme temperatures and high humidity. Physical damage to the keypad or USB‑C connector may affect the device’s ability to operate correctly. Users should handle the device with care to avoid bending or cracking the connector or damaging the keypad keys.
Product Identification
The official part number for this model is IKKP200C/32GB. This designation identifies the device’s specific configuration, including the 32 GB capacity and the inclusion of a keypad for multi‑pin authentication.
