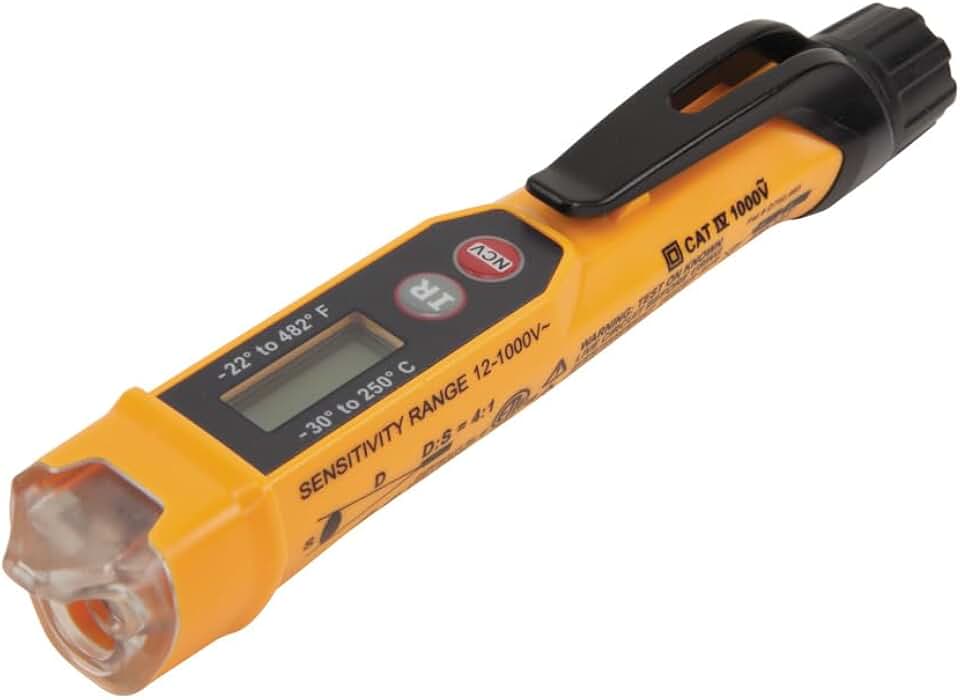

Klein Tools NCVT-4IR Non-Contact Voltage Tester and IR Thermometer Pen, 12-1000V AC, -22 to 482°F, with Audible/LED Alarms and Pocket Clip
Product Description
Overview
The Klein Tools NCVT‑4IR is a handheld pen designed for dual use as a non‑contact voltage tester and an infrared thermometer. It offers a voltage detection range of 12‑1000 V AC and a temperature measurement range of –22 to 482 °F. Audible and LED alarms provide immediate feedback, while a built‑in pocket clip allows convenient carrying on a tool belt or lanyard.
Voltage Detection
When the tip of the pen is brought near an energized conductor, the device assesses whether the voltage exceeds the 12 V minimum threshold. If voltage is present, the unit activates an audible alarm and illuminates an LED indicator. The design does not include any mention of measurement accuracy, calibration, or certification details, so the primary function is to signal the presence of voltage rather than to quantify it precisely.
Temperature Measurement
By pointing the pen’s sensor toward a surface, the infrared component gauges the emitted heat. The display reports temperatures within a range that extends from –22 °F up to 482 °F. This wide span accommodates typical electrical components, wiring, and environmental assessments. No specific calibration or precision figures are provided, so users should consider the reading as a general indicator.
Alarm System
The device incorporates both audible and visual alerts. When a voltage is detected, a built‑in speaker emits a warning tone. Simultaneously, an LED light turns on, offering a visual cue that is useful in low‑light conditions. The dual‑mode alarm system ensures that a user receives immediate notification through at least one sensory channel.
Pocket Clip Feature
A small clip affixed to the pen’s body enables attachment to a pocket, belt, or lanyard. This feature facilitates on‑the‑go testing without requiring a separate case or storage pouch. The clip’s size and material are not specified, but it is designed to support the pen during routine field use.
Physical Design
The pen’s form factor follows conventional ergonomic principles seen in handheld testing tools. The tip is designed to be brought close to electrical conductors or surfaces for measurement. The overall layout includes a clear display area, alarm indicators, and a pocket clip, all integrated into a compact casing suitable for everyday work environments.
Safety and Handling
As a non‑contact voltage tester, the product allows users to assess the presence of voltage without direct electrical contact. It is important for users to follow standard safety guidelines when working near energized circuits, even though the product itself does not provide explicit safety certifications or instructions in the supplied data.
Applications
Typical uses for this device include: identifying live wires during electrical installations, checking for residual voltage in de‑energized circuits, and monitoring temperature conditions of electrical components to detect overheating. Because the tool is dual‑purpose, it serves both voltage detection and temperature monitoring needs in a single, portable unit.
Specifications Summary
- Voltage detection range: 12‑1000 V AC
- Temperature measurement range: –22 °F to 482 °F
- Alarms: Audible tone and LED indicator
- Carry option: Integrated pocket clip
