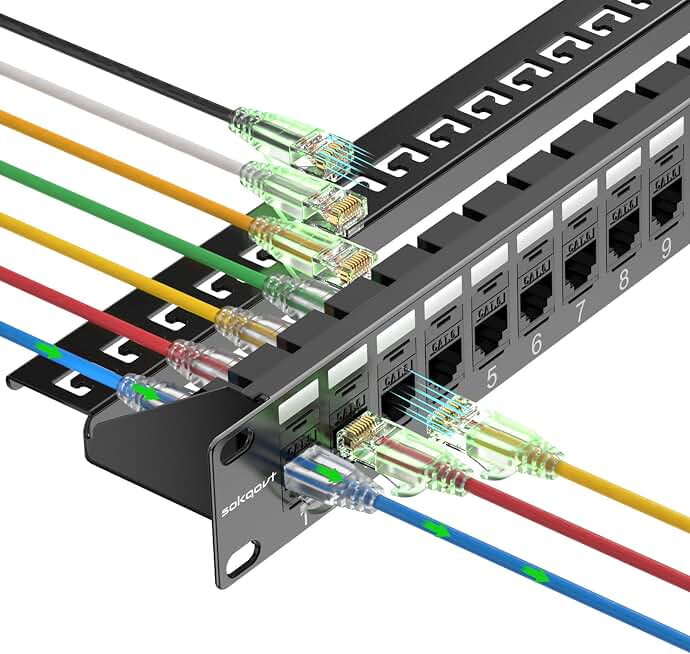

Sokqovt 24-Port Cat6 Coupler Patch Panel, 1U 19-Inch No Punch-Down Ethernet RJ45 Network Panel with Sturdy Rear Support Bar, 10G Time-Saver Design
Product Description
Product Overview
The Sokqovt 24-Port Cat6 Coupler Patch Panel is a compact networking solution designed for installations that require a 1U, 19-inch rack format. Each unit supports 24 individual RJ45 ports configured for Category 6 cable, enabling connections that meet the performance requirements of modern network infrastructure.
Port Configuration
With 24 discrete ports, the panel offers a standardized arrangement for network cabling. The ports are set up for Cat6 compatibility, which is a specification that supports data transmission at speeds up to 10 Gigabits per second over distances up to 55 meters. The panel’s RJ45 connectors provide a common interface that is widely used in building and data center environments.
No Punch-Down Design
Unlike traditional patch panels that require a punch-down operation on cable cords, this model eliminates that step. The coupler design allows for direct insertion of cables into the ports, simplifying the installation process and reducing the potential for cable damage that can occur during a punch-down procedure. This feature is intended to streamline setup in environments where time and precision are critical.
Sturdy Rear Support Bar
To ensure structural stability, the panel includes a rear support bar. This bar provides additional reinforcement against the weight of connected cables and offers a secure mounting point for the panel within a standard 19-inch rack. The support bar is a key component in maintaining the integrity of the panel over long-term use.
10G Time-Saver Design
The panel’s design is optimized for 10 Gigabit data rates, a capability that aligns with high-performance network demands. The time-saver feature refers to the reduced handling time associated with the no punch-down configuration, allowing network professionals to connect or replace cables with minimal effort. This design choice is intended to improve the efficiency of cable management tasks.
Installation and Mounting
Because the product is rated 1U, it occupies a single rack unit height in standard 19-inch racks. The dimensions and mounting options are consistent with typical rack equipment, enabling straightforward integration into existing data center or server room setups. The rear support bar works in tandem with the rack’s mounting hardware to provide a stable installation platform.
Compatibility Considerations
The panel is specified for Cat6 cable, a widely adopted category that is suitable for a range of network speeds, from 10/100/1000 Ethernet up to 10 Gigabit Ethernet. The RJ45 ports are a common standard for Ethernet connections, ensuring compatibility with a variety of switches, routers, and patch cables that are built to support this interface. The panel is also designed to interface with systems that require a 1U, 19-inch rack footprint.
Use Case Scenarios
Typical applications for this panel include small to medium office networks, educational environments, and any setting where a modest number of high-speed connections are needed. The 24-port layout offers a balance between capacity and space usage, making it suitable for installations where rack space is at a premium. The no punch-down approach is beneficial in scenarios where cables are frequently added or removed, such as in testing labs or temporary setups.
Key Design Elements
- 24 discrete RJ45 ports
- Cat6 compatible for 10G data rates
- No punch-down requirement
- 1U height, 19-inch rack compatibility
- Rear support bar for added stability
- Designed for quick cable insertion and removal
Conclusion
Overall, the Sokqovt 24-Port Cat6 Coupler Patch Panel offers a streamlined approach to managing network connections within a standard rack environment. By focusing on ease of installation and structural reliability, it addresses the practical needs of professionals who require a dependable, space-conscious patch panel for high-speed Ethernet connections.
