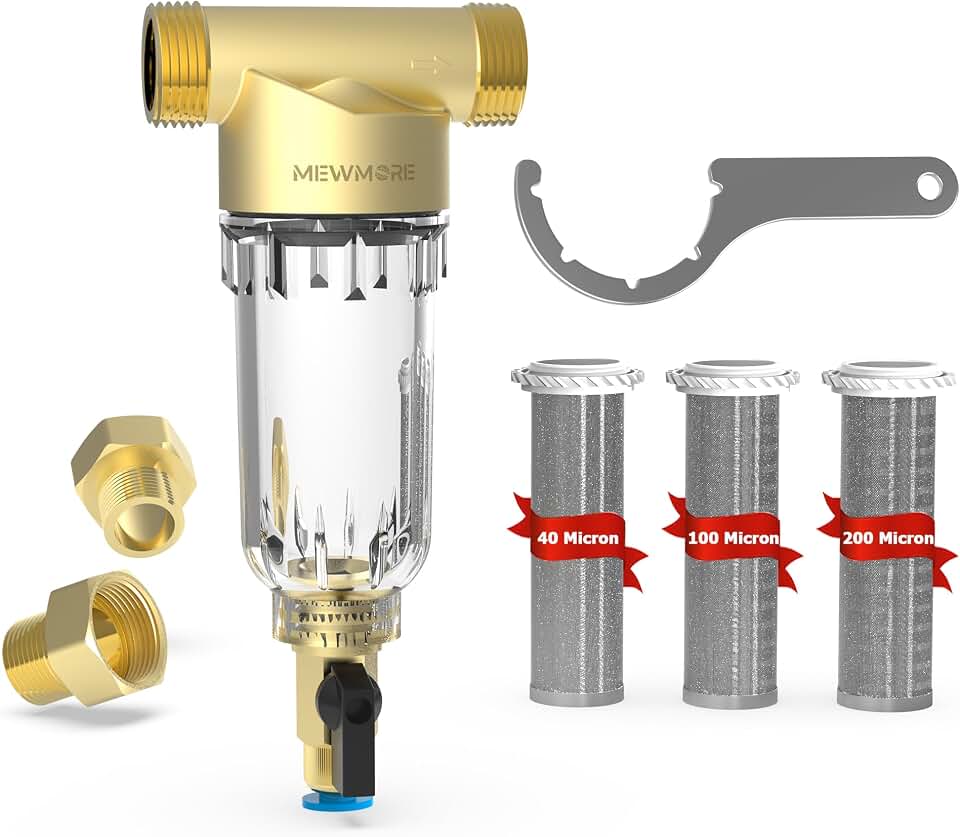

WHC40 Whole House Spin-Down Sediment Water Filter with 1" MNPT & 3/4" FNPT | Features 40, 100 & 200 Micron Screens, Plus 3/4" MNPT Adapter, Reusable & Flushable, Ideal for Well Water and Residential Pre-Filtration
Product Description
Product Overview
The WHC40 Whole House Spin-Down Sediment Water Filter is designed for residential water systems that require a pre-filtration stage. It is engineered to be installed at the main water line, offering a complete solution for removing suspended particles before water reaches fixtures throughout the home.
Key Features
- Triple-Micron Screens – The filter contains three sequential screens sized at 40, 100, and 200 microns. Each stage captures progressively larger particles, working together to reduce sediment buildup in downstream plumbing.
- Dual Thread Compatibility – Equipped with a 1‑inch Male National Pipe Thread (MNPT) fitting and a 3/4‑inch Female National Pipe Thread (FNPT) fitting, the unit can connect to a variety of piping configurations commonly found in well‑water and municipal systems.
- Included Adapter – A 3/4‑inch MNPT adapter is supplied, allowing users to transition between fitting sizes without the need for additional hardware.
- Reusable & Flushable – The filter housing and screens can be removed for cleaning. After flushing, the filter can be re‑installed, extending its usable life and reducing waste.
- Spin‑Down Mechanism – The design includes a spin‑down chamber that facilitates sediment separation, improving flow efficiency compared to static designs.
Installation and Use
Installing the WHC40 is straightforward for most residential plumbing systems. Begin by shutting off the main water supply and draining the line. The unit’s 1‑inch MNPT inlet attaches directly to the supply pipe, while the 3/4‑inch FNPT outlet connects to the branch line feeding the house. If the existing pipe size differs, use the included 3/4‑inch MNPT adapter to bridge the gap.
Once in place, allow the water to run for a few minutes to ensure that the spin‑down chamber is fully operational and that any trapped air is released. The filter should then provide a clear, sediment‑reduced flow to all downstream fixtures.
Maintenance Routine
Because the filter screens are removable, routine maintenance can be performed without replacing the entire unit. To clean:
- Turn off the water supply.
- Disconnect the filter from the main line.
- Remove each screen in sequence and rinse them with clean water.
- Inspect for signs of clogging; screens that are heavily clogged may be replaced if available.
- Flush the housing by running water through it for 30 seconds, then reattach the filter and restore the main supply.
Regular cleaning prevents sediment from reaching downstream fixtures and keeps water flow consistent.
Suitable Applications
While the filter is crafted for whole‑house pre‑filtration, its design makes it particularly appropriate for systems that receive water from wells or sources with higher sediment loads. By reducing particulate matter before the water enters the household distribution network, the unit can help maintain the longevity of appliances and fixtures that are sensitive to sediment buildup.
Durability Considerations
The filter housing is constructed from a durable plastic material that resists corrosion and chemical attack. Its robust design supports continuous operation in typical residential environments. The spin‑down chamber’s internal geometry is engineered to maintain performance over extended periods, provided that routine cleaning is performed as described.
Environmental Impact
Because the filter is reusable and flushable, the amount of waste generated compared to disposable cartridge filters is reduced. Users can extend the operational life of the unit by following the maintenance instructions, which contributes to lower overall consumption of replacement parts.
Summary
In summary, the WHC40 Whole House Spin‑Down Sediment Water Filter offers a multi‑stage, spin‑down filtration system with 40, 100, and 200 micron screens. Its dual thread compatibility, included adapter, and reusable design make it a practical choice for households seeking to mitigate sediment in their water supply without the need for frequent cartridge changes.
